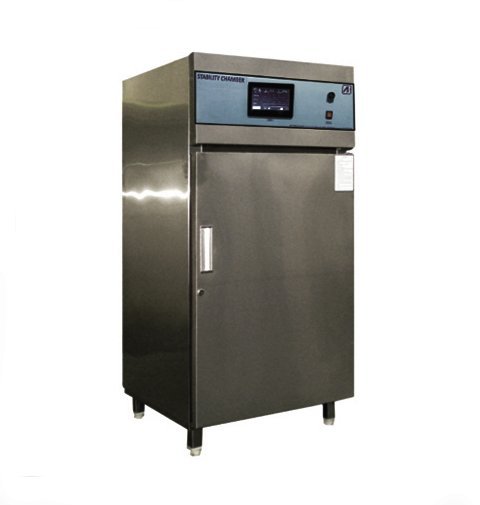

Stability Chamber
10 °C to 60 °C ± 0.5 °C and 35% to 95% RH, 125 L to 1000 L chambers.
- Temperature range
- 10 °C to 60 °C ± 0.5 °C
- Humidity range
- 35% to 95% RH or less
- Control
- Microprocessor based PID type digital control
Price on request
Quoted by the manufacturer against your size and options.
Description
Standard double wall construction; inner and outer chamber made out of highly polished stainless steel sheet of 304 grade.
Temperature below ambient is controlled by a sealed compressor. Stainless steel reservoirs heated by immersion heaters provide humidity, complete with all accessories.
Specifications
- Temperature range
- 10 °C to 60 °C ± 0.5 °C
- Humidity range
- 35% to 95% RH or less
- Control
- Microprocessor based PID type digital control
Scroll horizontally to compare all columns
| Inner chamber size (inches) | Capacity |
|---|---|
| 21" x 18" x 18" | 125 Ltrs. |
| 24" x 24" x 24" | 225 Ltrs. |
| 36" x 24" x 24" | 336 Ltrs. |
| 48" x 26" x 26" | 500 Ltrs. |
| 48" x 36" x 36" | 1000 Ltrs. |
Controller features
- Digital LCD display
- Microprocessor based PID temperature controller-cum-indicator
- Microprocessor based PID humidity controller-cum-indicator
- Low water cut off
- Auto dehumidified for better accuracy
- Temperature and humidity overshoot alarm
- Comes with 21 CFR software
Optional accessories
- PLC with HMI touch screen
- Dual backup
Related equipment
All of Environmental control & cold storage
Humidity, stability and germination chambers

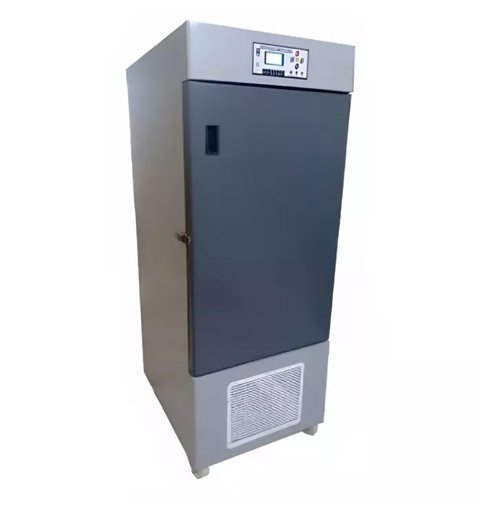

Seed Germinator (Single Chamber)
One heating and cooling chamber, 10 cu. ft., 5–45 °C, humidity to 100% RH.
Price on request
Humidity, stability and germination chambers

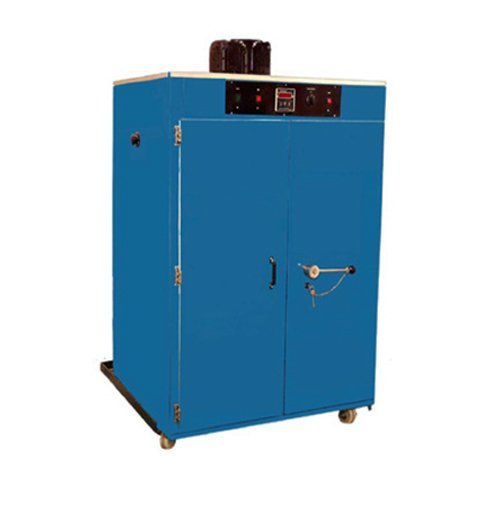

Seed Dryer
